Name _________________________

Proposition Logic Worksheet 2

Fall 1997

1. Give the minterm expansion for the following switching function:

x y z output
0 0 0 1
0 0 1 0
0 1 0 1
0 1 1 1
1 0 0 1
1 0 1 0
1 1 0 1
1 1 1 1

f(x,y,z) =



2. Find a simplified expression for the above function, using any symmetries you are able to spot.





3. Find a simplified expression for the following function using symmetries:

x y z
0 0 0 1
0 0 1 0
0 1 0 1
0 1 1 0
1 0 0 0
1 0 1 1
1 1 0 0
1 1 1 1



4. Simplify the preceding function using a Karnaugh map.

In problems 5 and 6, consider the 7-segment decoder.:

Seven segment LED display

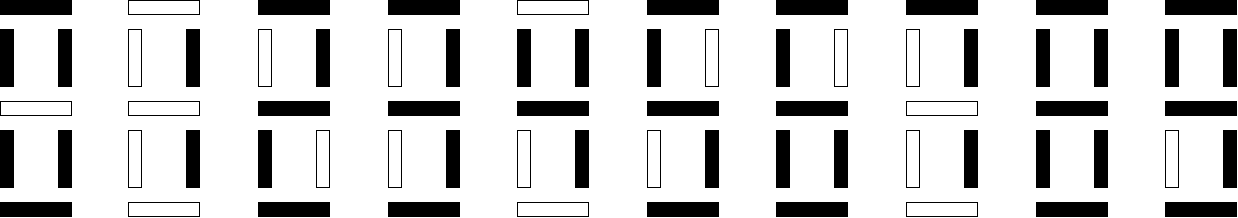

Display of 0 through 9 with a seven segment display

5. In the following, we assume that the digits are coded in BCD. Specify precisely what the encoding is:



6. Give a Karnaugh map (with don't cares) for each of the switching functions.

s0: 						s1:

s2: 			s3:

s4:			 s5:

s6:



7. Simplify each of the switching functions, using don't cares to advantage.





8. Construct gate realizations for the full 7-segment display.
