Turing Machines

“The idea behind digital computers may be explained by saying that these machines are intended to carry out any operations which could be done by a human computer.”
—Alan Turing

Turing Machines (TMs) are named after (not by) their inventor, Alan Turing. The TM is certainly the most influential general model of computation, though not the most practical. It is simple, yet apparently universal in terms of what can be computed.

In a Turing Machine, the input is written onto an infinite (otherwise blank) tape. The TM has a read/write head that is initially positioned at the start of the input string. Computation is controlled by a deterministic finite automaton: which transition to take depends on

the state of the automaton, and
the tape character under the read/write head;

the transition specifies

a tape character to write (overwriting the character that was just read),
the new automaton state, and
whether the read/write head should move right by one character or or left by one character.

The TM repeatedly takes transitions (moving the head and reading and writing the tape) until it transitions to one of two special automaton states: if it transitions to the halt-and-accept state then computation ends and the input is accepted; if it transitions to the halt-and-reject state then computation ends and the input is rejected.

This has two important consequences:

The TM can move back and forth over the input, reading it as many times as it wishes. (Contrast this with DFAs, which see each character of the input exactly once.)
There is no guarantee that a Turing Machine will ever reach the halt-and-accept or halt-and-reject states. Unlike a DFA (which will accept or reject), a TM has three possible outcomes: accept, reject, or never produce an answer.

Psychological Motivation

Other models of general computation (including lambda calculus, which later became the core of modern functional programming languages) were proposed before Turing Machines. But TMs were particularly influential, perhaps because Turing’s original 1936 paper, On Computable Numbers, with an application to the Estschedungsproblem [i.e., Decision Problem] , directly modeled Turing Machines on the capabilities of a human doing calculations, e.g.,

Humans do calculations on paper; using a long one-dimensional strip of paper instead of a normal page would be less convienient, but it wouldn’t change what calculations could be performed;
Dividing the strip of paper into squares and writing one character per square wouldn’t change what the human could calculate.
There are only finitely many different symbols that could be written in any particular square. (Even at some insane resolution like 1 million dots per inch, a printer can only print a large but finite number of different images in any particular square. Coming up with infinitely many different symbols to draw in a finite square on the paper requires arbitrarily string magnifying glasses to distinguish different symbols.)
At any given instant, there’s a bound on how many squares on the paper the human can observe; to see more squares, the human would have to move their head or eyes and make successive observations.
There are only finitely many things the human could be thinking at any given instant; Turing calls these “states of mind” and argues that the number of such states is finite because the brain is finite and (as with symbols on paper) if the number of possibilities were infinite then the difference between different states of mind would be infinitely small. This is perhaps the least convincing of Turing’s arguments, but it’s not obviously wrong.

These assumptions about humans then translated into the infinite tape, finite controller, etc., of a Turing Machine. Consequently, it’s plausible that a Turing Machines can calculate anything a human could, and hence TMs serve as a “universal” model of compuation.

In contrast, previous proposals for general models of computation could be shown to calculate everything one could think of, yet there was always the worry that one might eventually find other reasonable calculations that a human could do but were impossible in the model.

An Example

For Turing Machines with a small number of automaton states and transitions, we can define the TM by drawing a diagram. As with DFAs and NFAs, the graph shows the states and the transitions. The label $a\to b, D$ means “we take this transition if the current tape symbol is $a$ ; if we take this transition, overwrite the $a$ on the tape with $b$ , and move one step in direction $D$ on the tape (right or left).”

Example

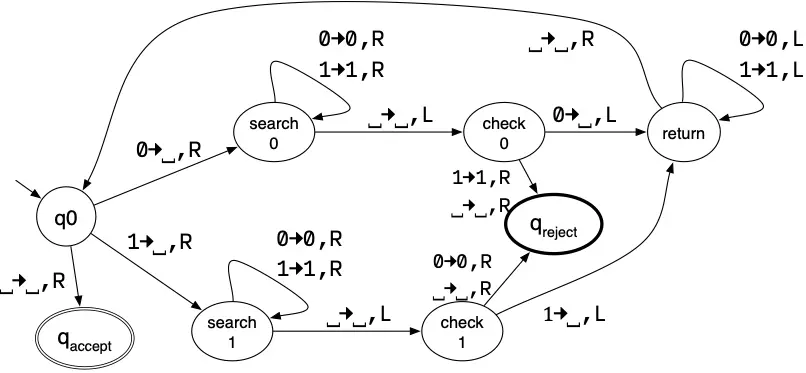

The following Turing Machine checks whether its input is a palindrome of even length: TM for even palindromes It works roughly as follows:

In the start state “q0” the TM checks the first symbol of the input.
If it’s 1, we erase it and move right. The TM then moves to the last symbol of the input (by moving right without modifying the tape until it finds the blank symbol following the input, and then moving one step left). It then checks whether that last symbol is 1.

If not, the TM halts and rejects.

If so, the TM erases that last 1 (leaving what is hopefully a shorter palindrome on the tape). It also switches to the “return” state, which moves the TM left to the first remaining symbol (by moving left until it sees the blank before the first symbol, and taking one step right). Then the TM restarts and checks that the remaining characters also form a palindrome.
If the first character was a 0, the TM takes the upper path, which performs similar steps (erase the leading 0, move to the last symbol, confirm it’s 0, erase the trailing 0, and then move back to the start of the remaining string).
if the first character is a blank, it means that the input is (or has become) and empty string; this is definitely an even-length palindrome, and so the TM halts and accepts.

Turing Machine Variations

For DFAs, we argued that adding other capabilities such as nondeterminism or spontaneous $\epsilon$ -transitions didn’t change what can be computed.

For Turing Machines, many other extensions have been investigated, and all have turned out to be equivalent to the original TM. For example, we could add any or all of the following extensions, and any calculations the extended TM could perform could be simulated by an ordinary basic TM as defined above:

Adding the option to write or not on each step;
Adding the option to stay-in-place rather than moving left or right;
Adding any finite number of finite “registers” (variables with finite storage capacity);
Allowing transitions to erase the entire tape in one step;
Allowing multiple tapes, each with independent read/write heads;
Allowing the read/write head to read $B$ symbols at the head (instead of just one);
Making the tape two-dimensional (with a head that can move up/down/left/right);
Making the controlling automaton an NFA instead of a DFA;
and many other variations.

The Church-Turing Thesis

Definition

The Church-Turing Thesis (also known as Church’s Thesis or Turing’s Thesis) says that any realistic model of general computation will be equivalent in power to Turing Machines.

It’s called a “thesis” rather than a “theorem” because it’s impossible to prove unless we can formally define what counts as a realistic model of computation, which seems difficult.

Empirically, however, it seems true. Many other models of computation have been proposed, and they all have turned out to be equivalent to Turing Machines (or in rare cases, less powerful than Turing Machines).

Universal Turing Machines

We have already seen examples of theoretical machines that can simulate other machines. For example, we can use DFAs to simulate NFAs (subset construction), and we can use one DFA to simulate two DFAs running in parallel (product automaton).

Similarly, one Turing Machine can simulate another. In fact, there are so-called Universal Turing Machines (UTMs) that can simulate any Turing Machine we’d like; when we start the UTM, the tape contains an encoding of the machine to simulate and an encoding of the input to feed to the simulated machine. Then the UTM accepts, rejects, or runs forever depending on what that machine would do on that input.

This is convenient, because we don’t have to imagine building a new TM for every different problem (the way we would build a different DFA every time we want to check strings against a different regular expression). Instead, we could have a single UTM, and tell it (on the tape) which TM we want to emulate and what input it should use.

We know that Universal Turing Machines exist because specific examples have been constructed. The first UTM was proposed by Alan Turing in his original paper. A number of other TMs have been proved universal since then, with the simplest having only 2 automaton states and 3 non-blank tape symbols (Smith and Wolfram, 2007).

Variations on UTMs also let us simulate any given TM on any given input for a specific number of steps, or until something interesting happens on the (simulated) tape. We could also simulate two TMs running at once (by multitasking; taking one step on one simulated TM, and then One step on a second simulated TM, then back to the first, and so on).

The upshot: When thinking how a Turing Machine might solve a problem (designing the algorithm), we are free to say that at some point the TM can start simulating some other machine on some other input, and watch what happens.
