A Cheap and Flexible (Literally!) Softbox
or...
An Even Better Bounce Card

Introduction

Inspired by A Better Bounce Card and ggjoser's softbox projects, I decided to make something similar. What I wound up with, though, was a bit better than those projects, so I thought I'd write it up so other people could try out the same ideas.

My bounce system works like a LumiQuest softbox, a Better Bounce Card, and a Sto-Fen Omni-Bounce all rolled into one. Best of all, it costs only a few dollars to make!

Materials

For each bouncer, you will need the following materials:

• Two sheets of fun foam or equivalent, roughly 8.5x11in or 22.5x30cm. These cost about 33 cents each at Wal-Mart or an art supply store (call ahead, because not all stores carry them). My local Wal-Mart was out of stock, so I bought a $6 pack of 30x45cm sheets in multiple colors, cut two sheets in half to make bouncers, and gave the rest to my daughter for crafts projects.
• 4-6 inches (10-15 cm) of white hook-and-loop fastener strips (Velcro). Actually, you need that much loop material, but only need about 1 cm of hooks. The strips should be about 1/2 inch (1 cm) wide.
• A stapler and staples, or glue that's appropriate for gluing the hook-and-loop material to the fun foam. The glue will look nicer, but I went with the security of the staples.
• A rubber band.

Assembly

I started out by making a prototype from a sheet of white paper. That allowed me to get the dimensions correct and be sure everything was going to work out.

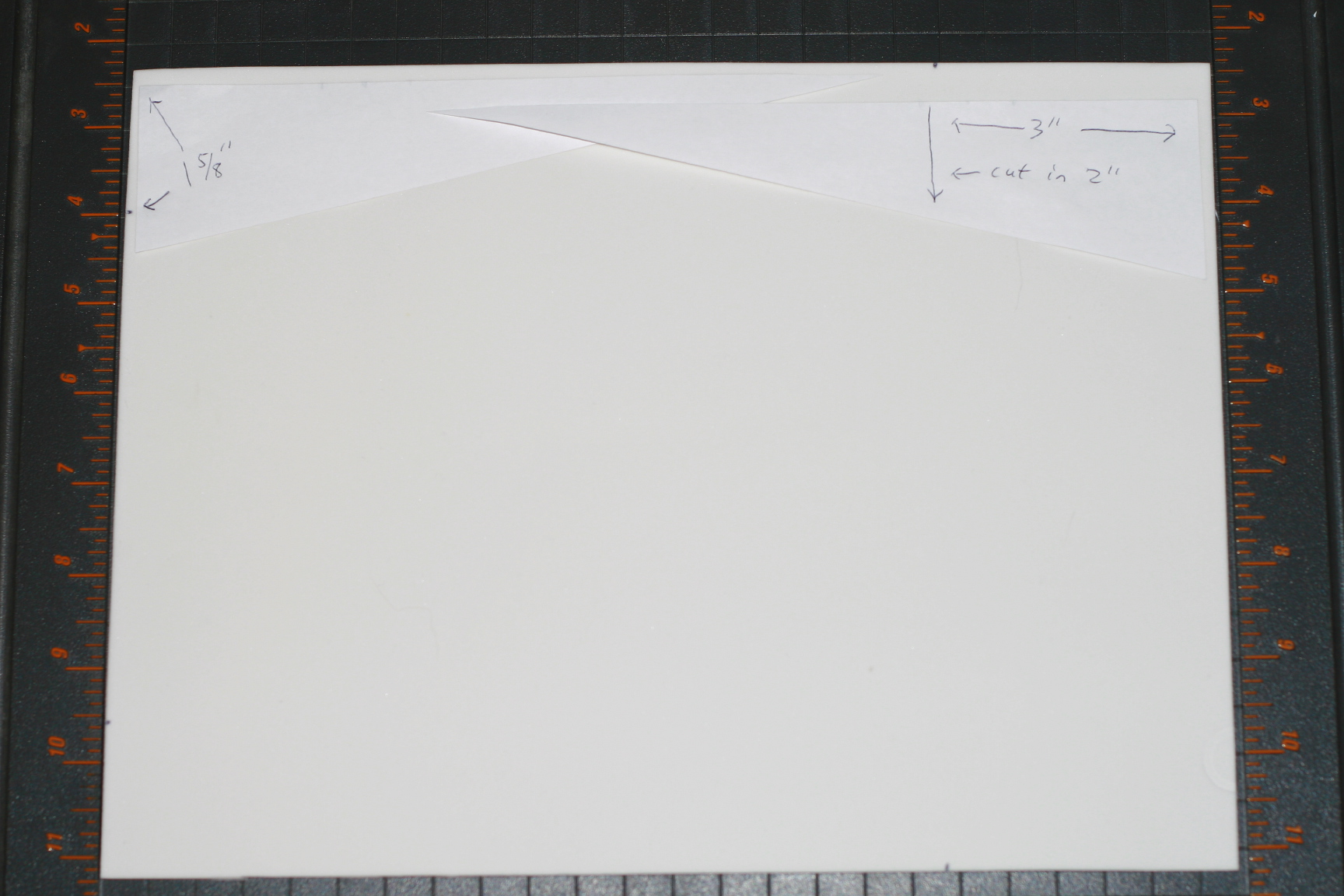

1. Using a black pen, make very small marks on the white foam in preparation for cutting. The cuts will be similar to those used to make A Better Bounce Card, except that the cut will end about 3 inches (7,5cm) from what will become the top of the softbox. The marks at what will become the bottom (narrowest part) of the softbox should be placed such that the foam will just barely wrap around three sides of the flash unit. Use your white paper to make sure you get it correct, and try your flash in both the "long" and "wide" modes. For my Sigma EF-500 DG Super, and with the 22.5-cm-wide foam, my marks were 1-5/8 inches in from the edge. The very bad photo at right has random pieces of paper placed on top of the foam to show where the marks were made. The cut will follow the triangular paper at the left of the photo.

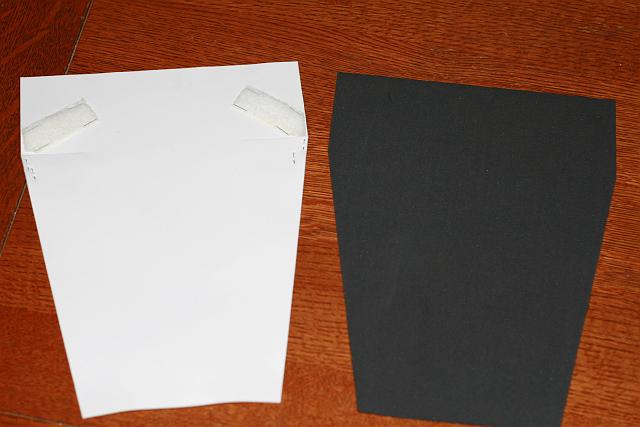

2. Cut as straight a line as possible between your marks, again following the general design of A Better Bounce Card but ending before the top of the card. See the second photo at right.
3. Repeat the same cuts on the black foam. I found that my black pen made a visible mark that I could use to guide my cuts.
4. Starting from the place where your previous cuts ended on the white sheet (3 inches or 7,5 cm from the wide part of the foam), cut 2 inches (5 cm) inward.

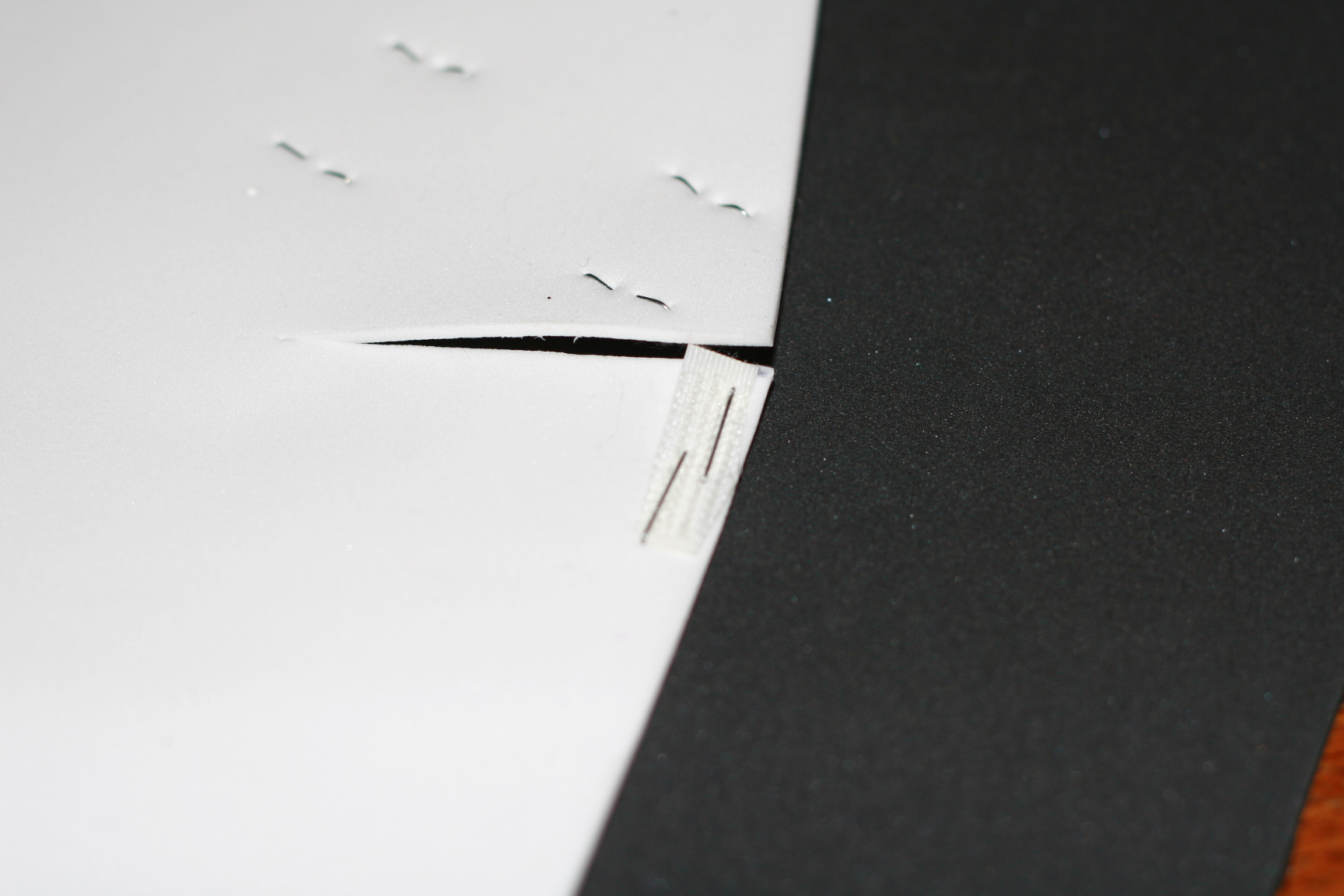

5. Using staples or glue, attach a very small piece of fastener hooks just below the inward cuts (see photo). These hooks will be used to hold the top of the box down.

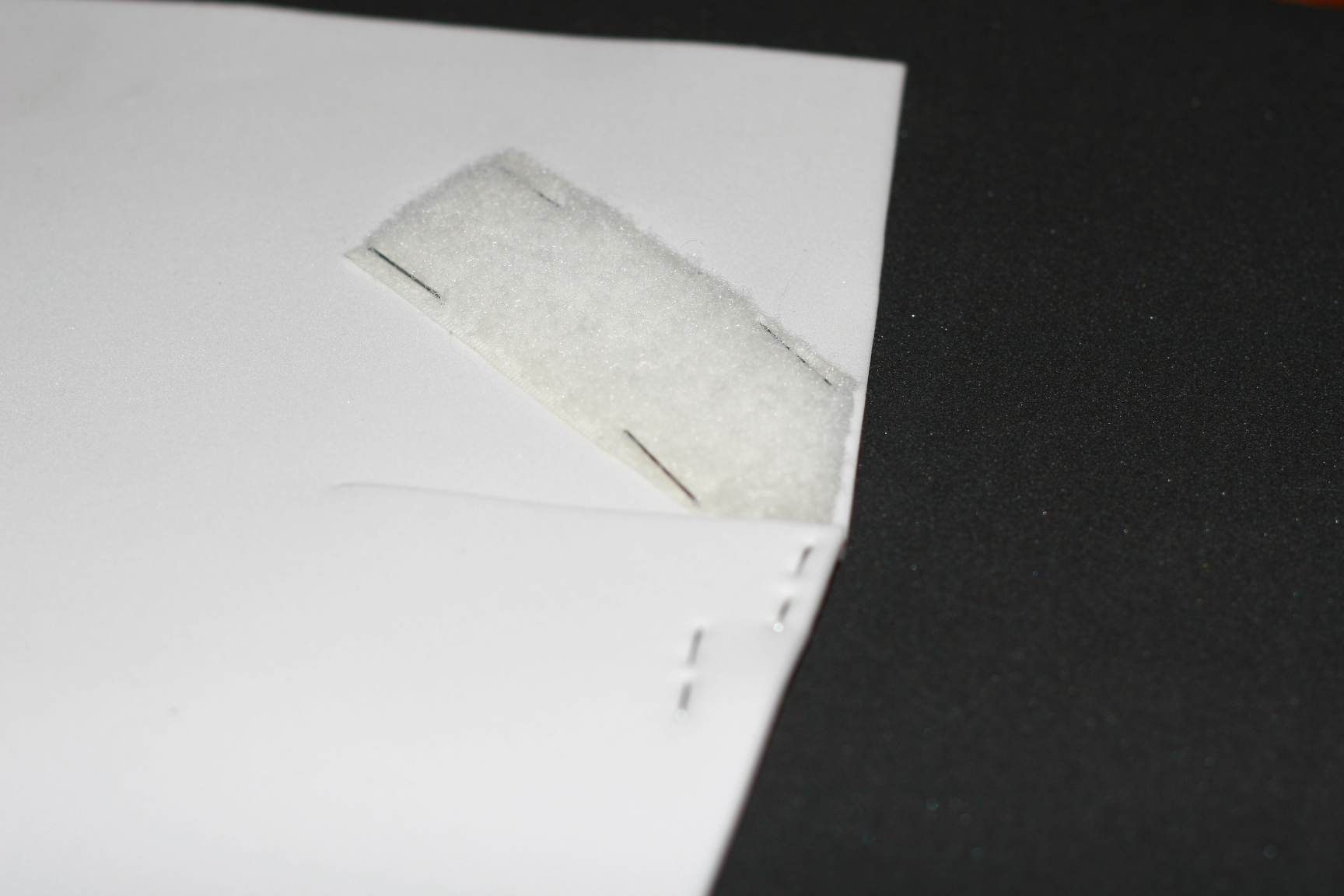

6. Turn the white foam over, and using staples or glue, attach a longer strip of fastener loops at an angle above the cuts. To determine the length, fold the upper part of the sheet down at a 90-degree angle (see usage photos below) and mark where the hooks will need to attach. Try the fold at several angles to ensure that the hooks will always be able to engage the loops. Trim the loops so that they neatly fit the corner of the foam.

Usage

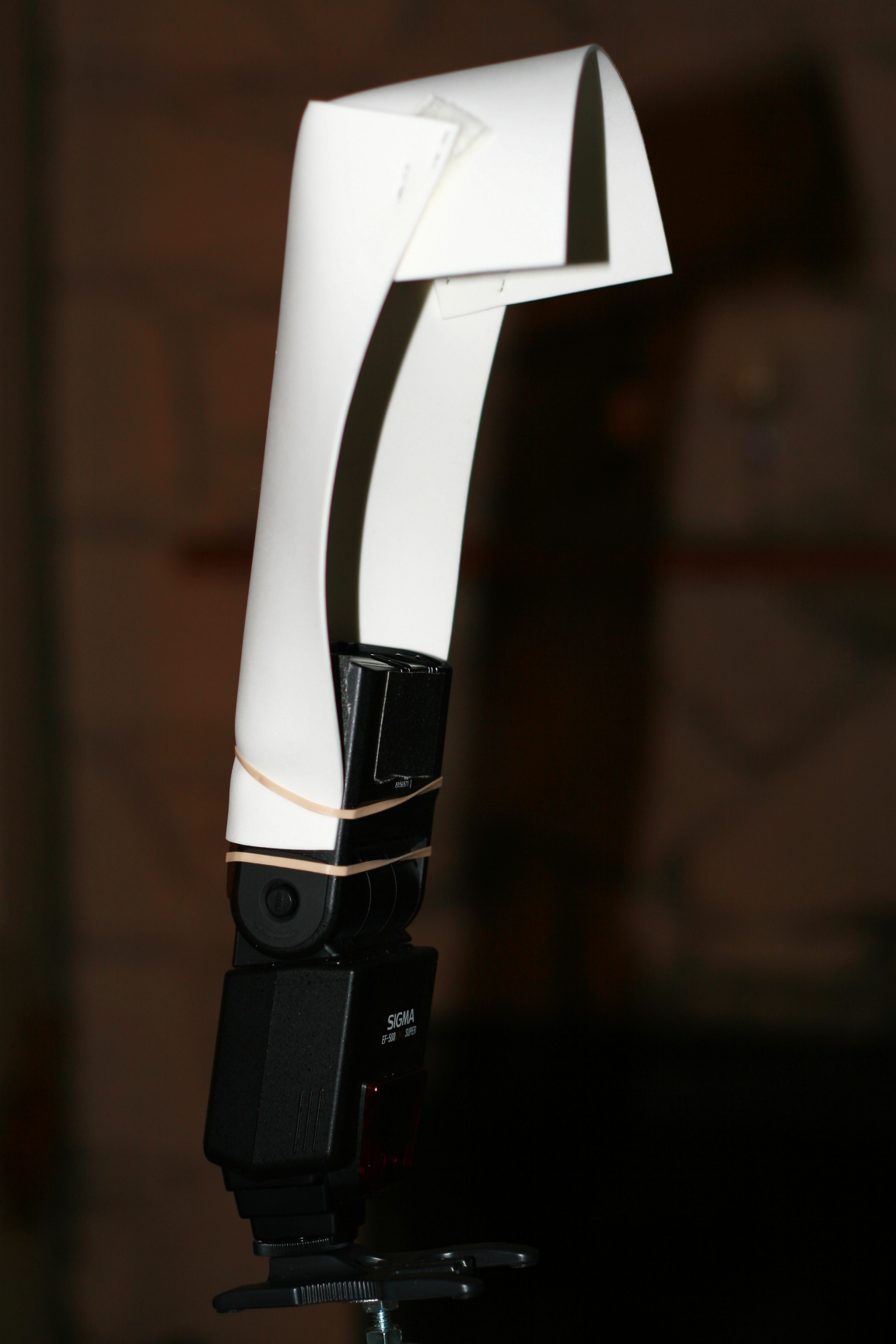

Attach your bouncer to the flash unit with a rubber band. (I like to keep a spare on my flash in case one breaks.)

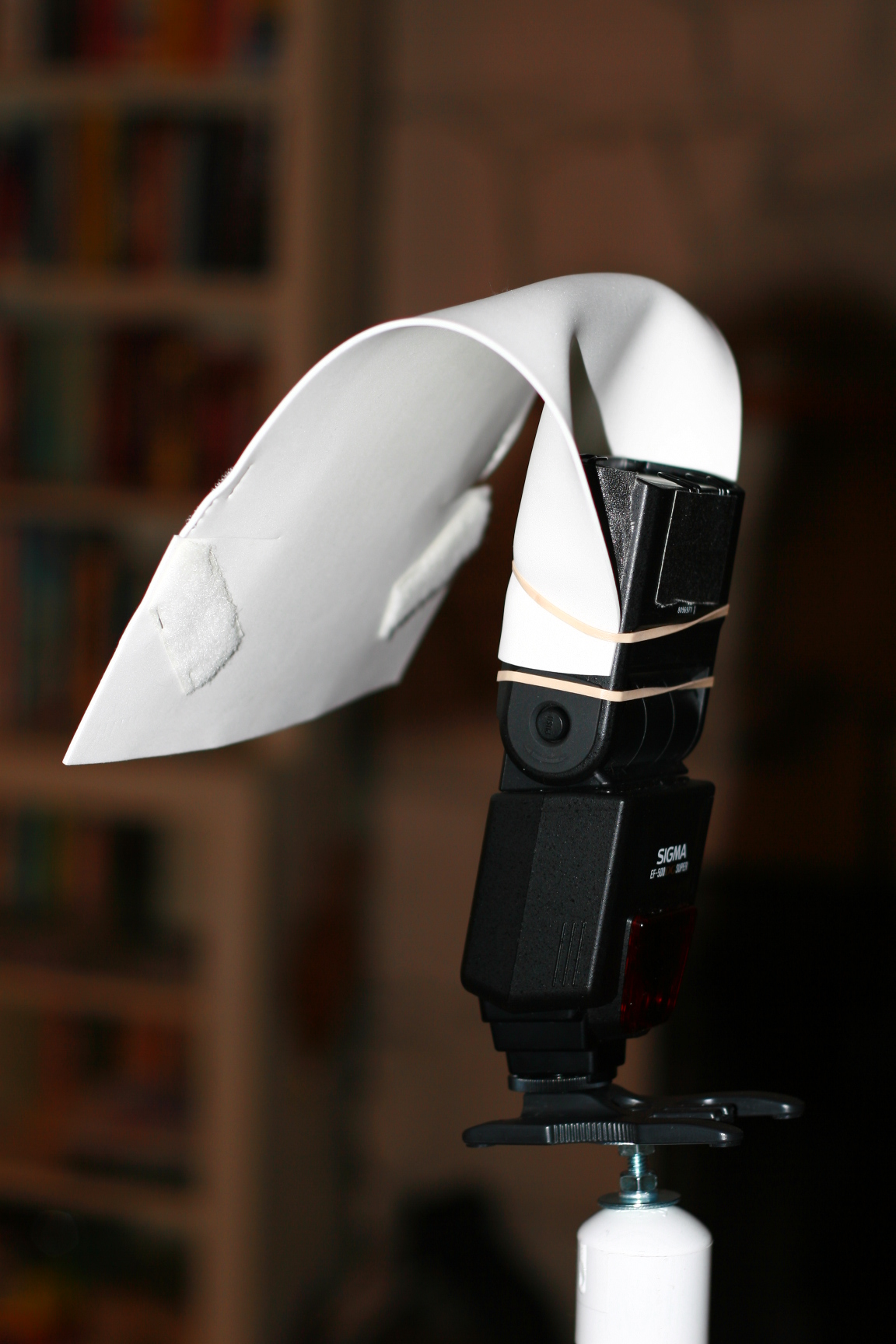

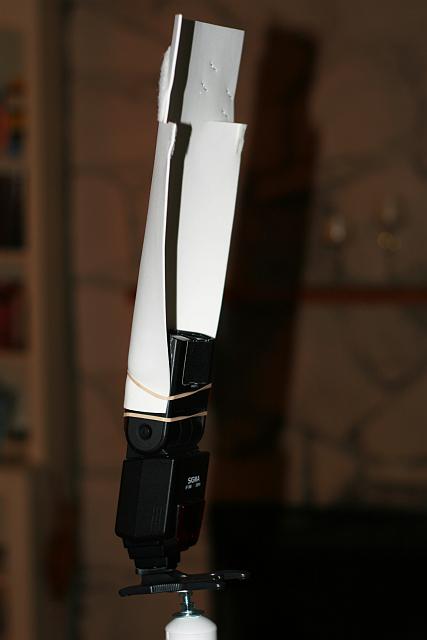

The advantage of the softbox is its flexibility. In its simplest mode, you can use it exactly like A Better Bounce Card, to throw most of your light up while sending some forward to create catchlights in the subject's eyes. (The fastener hooks should face forward to make other applications possible.)
