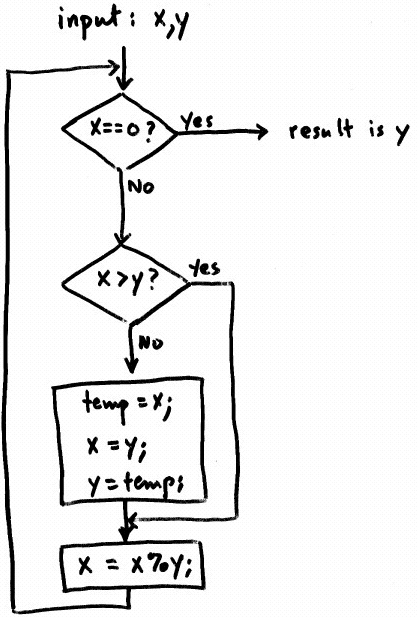

Exercise Construct a functional program from the following flowchart:
In general, associate function with each point in program between 2 steps.
Exit function produces final value.
Entry function takes overall parameters.
Other functions are inter-related, possibly by mutual recursion.
We call this McCarthy's Transformation.

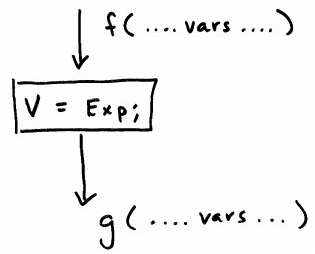

Assignment Stmt
The relationship is
f(...V...) = g(...Exp...);
same position
f(x,y) = g(x+1,y);

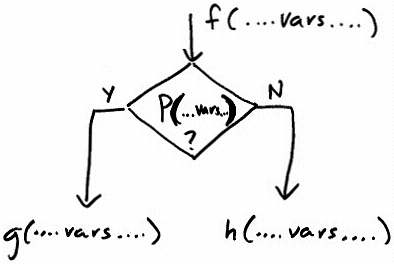

Relationship :
f(...vars...) = P(...vars...)?
g(...vars...)
: h(...vars...)
